We conduct the development of cutting-edge evaluation and analysis methods to meet the client’s needs.
Examples of development
- ・ Input and output calculation through "current-rest-method" resistance analysis
- ・ Method of separation of resistance using the “four-electrode cell”

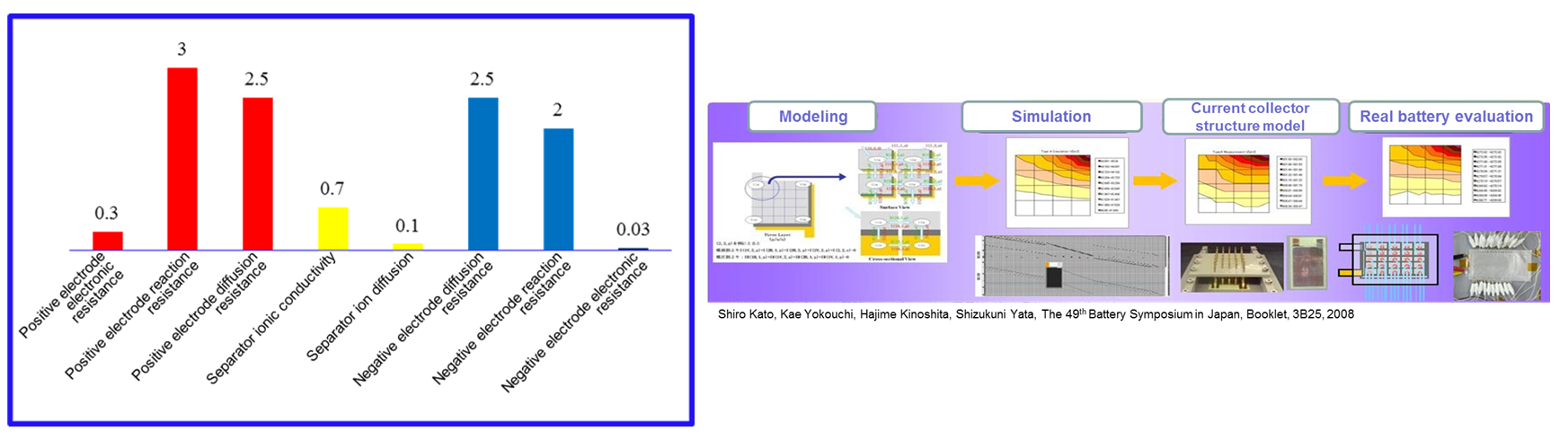

- ・ Complex analysis method for each resistance
- ・ Method of separating electronic/ionic conductivity (inside electrodes)
- ・ Limit load rate evaluation method (initial stage, deterioration simulation )
- ・ Life prediction simulation method・ Reactive homogeneity simulation
- ・ Original test method for safety mechanism analysis
- ・ Mechanism clarification method by highly accurate voltage and current measurement
- ・ Thin (100～20 μm) cross section enlargement analysis

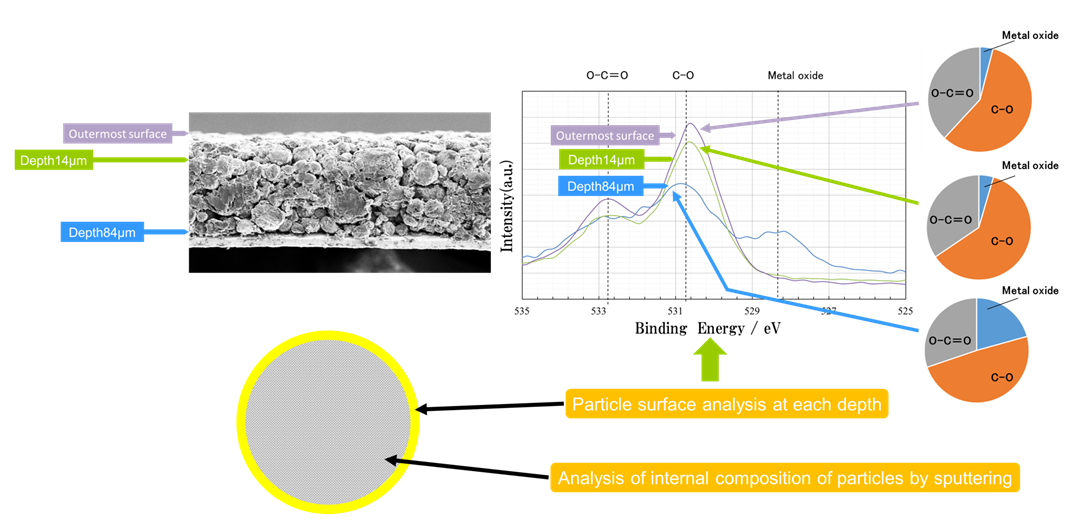

Analysis of analysis of SEI composition at each depth in electrode cross section direction
- ●It is effective for analysis of SEI composition change in the depth direction of several 10 μm to 100 μm from the surface.
- ・ Analysis of electrode uniformity and reactive homogeneity by XPS measurement in the depth direction
- ・ Suggestion for problem solving direction from estimated deterioration mechanism

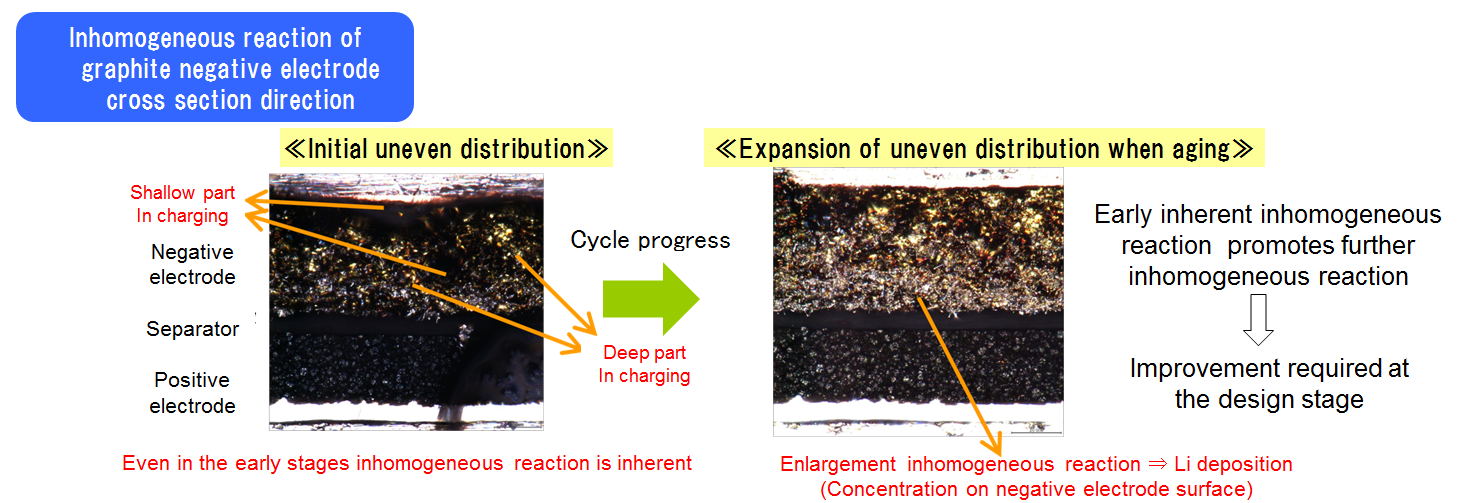

Capturing inhomogeneous reaction closely related to secondary deterioration at design stage
●By capturing invisible inhomogeneous reaction (possibility of greatly influenced deterioration, hiding inside) at the beginning, feedback at design stage for performance improvement and suppression of secondary deterioration becomes possible.
